PIT Tag Re-useable Implanter Only
Please call for prices

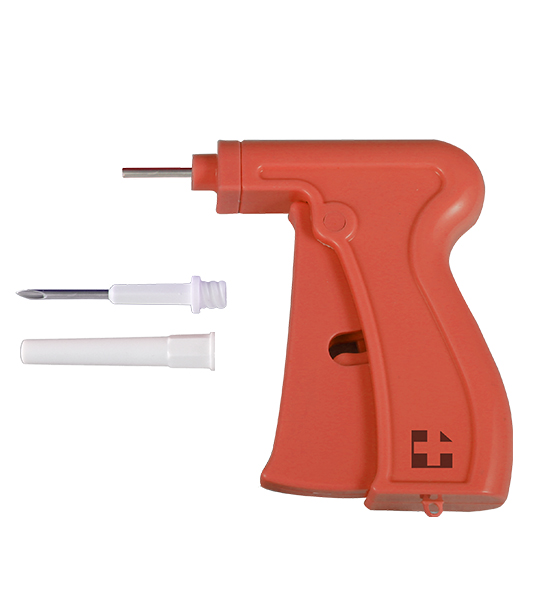

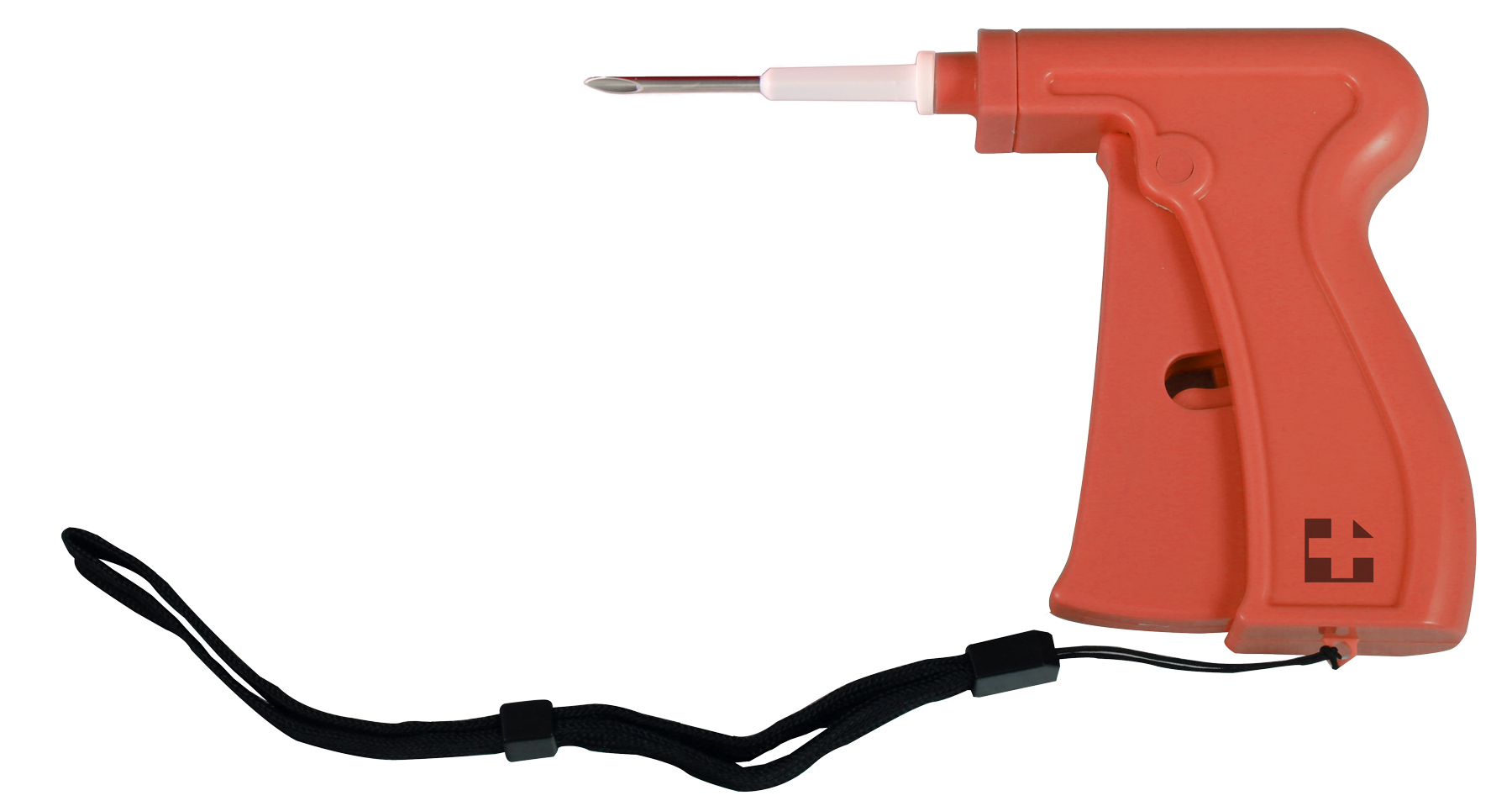

The SwissPlus Re-Useable PIT Tag Implanter.

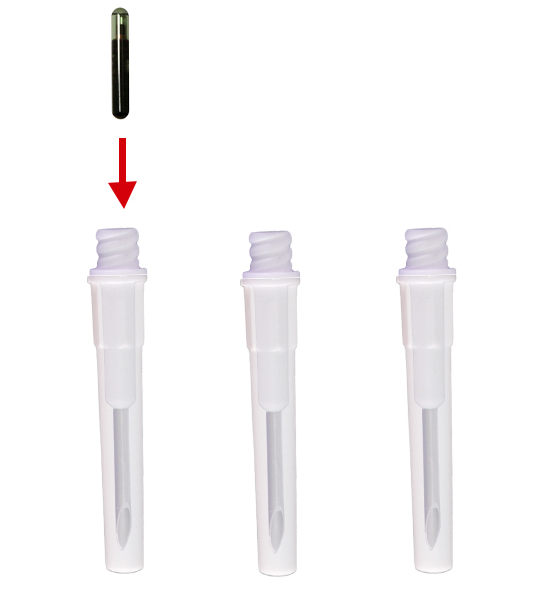

This simple, ergonomic, plastic implanter gun allow multiple screw in cannula to loaded and the cannula attached to the gun one by one for quick and easy implanting.
Available options include:

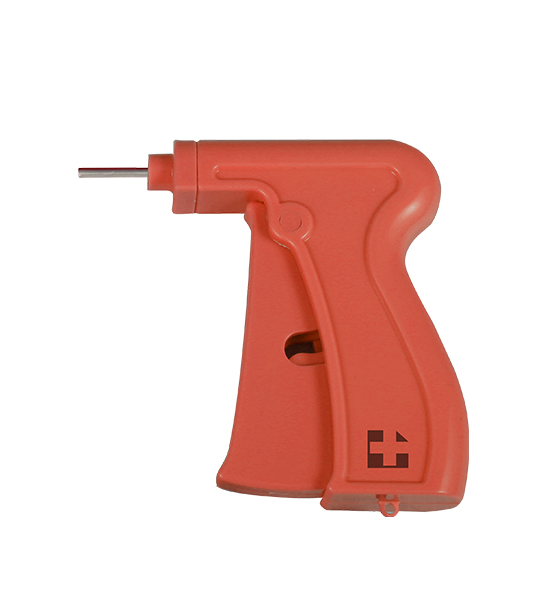

- Gun Only to suit 2.1mm Dia
- Gun Only to suit 1.4mm Dia
Bulk prices available for 100+ units. Call or email for assistance.
Choose your option here:
Suits PIT Tag Models: 2.12 x 12mm Bio-Glass, 1.40 x 8mm Bio-Glass and 2.12 x 13mm Bio-Polymer
Needle sizes:
2.55 OD x Length = 25mm.
1.89 OD x Length = 25mm
IC type: EM4305 chip
Operating frequency: 134.2 kHz +/- 3000 Hz.
Chemical resistance: Water immersion IP68 20°c, 24 hours, 1 metre. Aqueous solution of salts 20°c, 100 hours. Alcohol, oil, HLC (10%) 20°c, 100 hours. Ammonia 20°c, 100 hours.
Mechanical Resistance:
Vibration test: IEC 68.2.6
Shock: IEC 68.2.29
Storage temp: -40°c to +90°c (Recommend <+30°c)
Operating temp: -35°c to +85°c
Read range (using a pocket 9v battery scanner): 70mm (2.75″)
